Data Sheet:

WLL	Working load limit （kg）	Approx thickness （mm）	Approx width （mm）	Minimum length （m）	Maximum length （m）	Weight/meter（kg/m）
						6:1	7:1
1T	1000	6	40	0.5	80	0.30	0.35
2T	2000	7	50	0.5	80	0.44	0.52
3T	3000	8	60	0.5	80	0.65	0.74
4T	4000	9	70	0.5	80	0.83	0.91
5T	5000	11	75	0.5	80	1.01	1.29
6T	6000	12	80	1.0	80	1.19	1.39
8T	8000	13	90	1.0	80	1.50	1.75
10T	10000	15	100	2.0	80	1.95	2.28
12T	12000	16	110	2.0	80	2.46	2.87
15T	15000	18	125	2.0	80	2.97	3.47
20T	20000	20	150	2.5	80	4.66	5.440
25T	25000	24	180	2.5	80	5.84	6.820
30T	30000	32	200	2.5	80	9.23	10.80
40T	40000	40	200	2.5	80	12.10	14.20
50T	50000	45	220	2.5	80	14.10	16.30
60T	60000	65	240	4.0	80	17.30	20.20
80T	80000	70	260	4.0	80	22.20	25.90
100T	100000	80	290	4.0	80	26.00	30.30
200T	200000	120	450	5.0	80	64.00	74.60
300T	300000	160	525	5.0	80	79.00	92.20

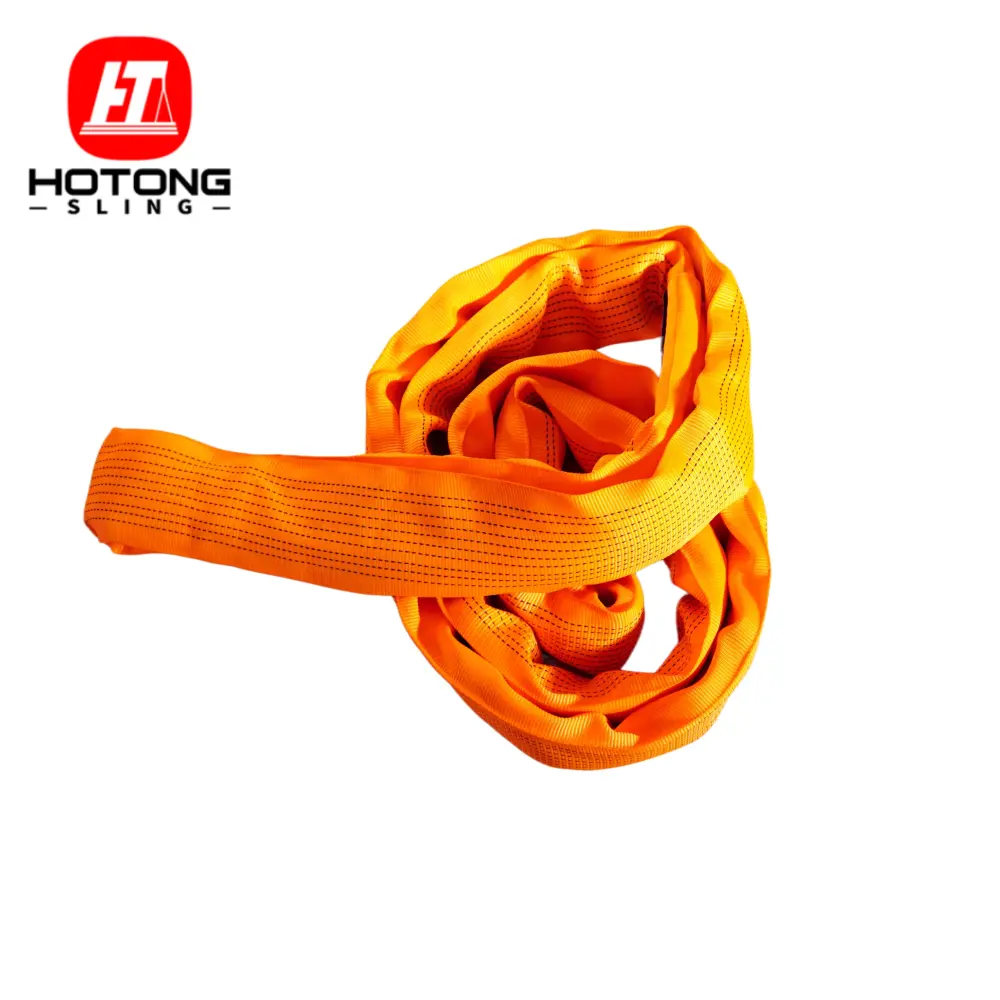

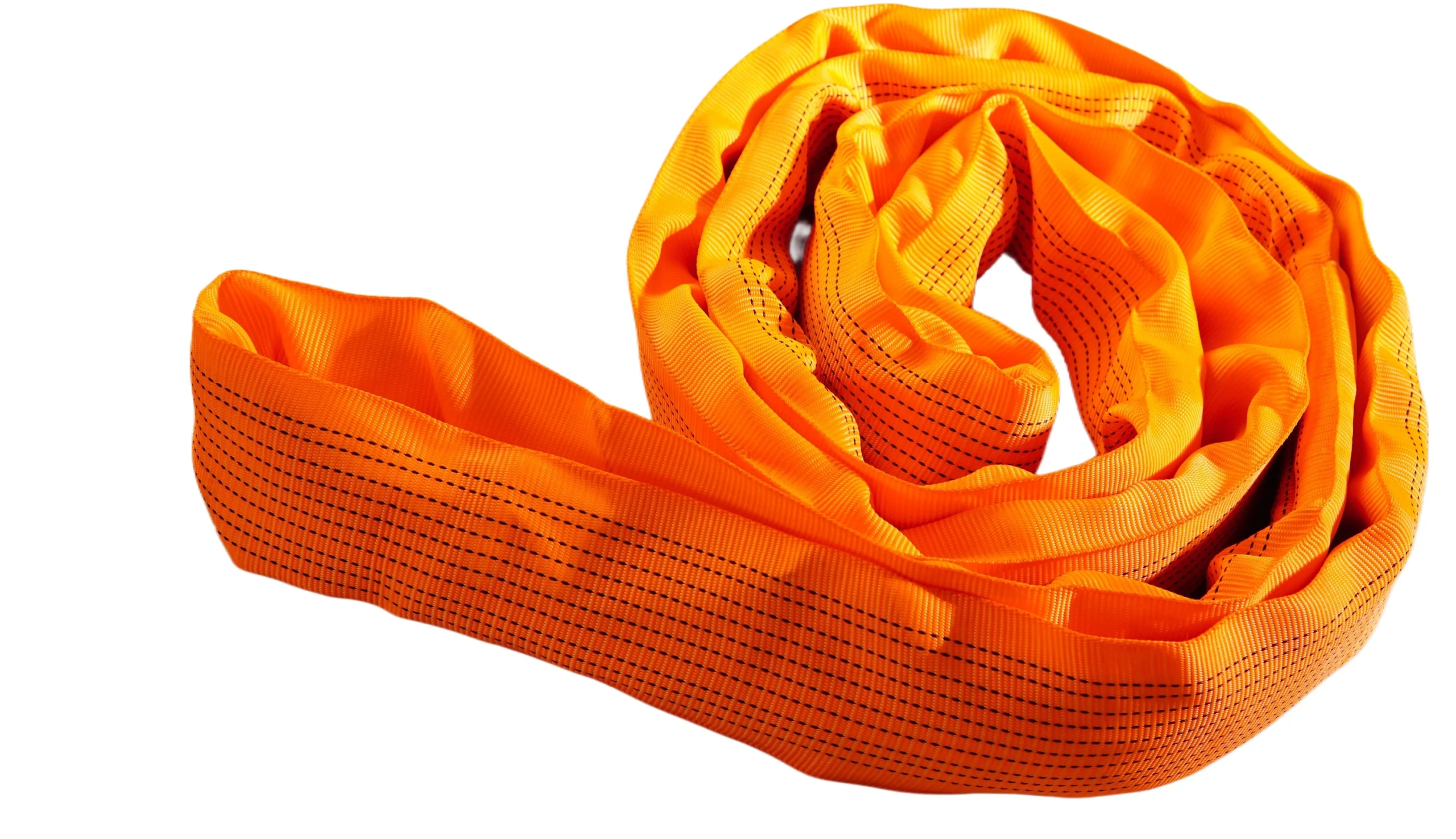

Product Picture:



Manufacturing Process:

Webbing, Dyeing, Sewing, Packing

Packing:

Carton, Wooden Box

Application:

Construction, Shipbuilding, Heavy-Duty Lifting, Oil & Gas Industry

For more information or a customized solution, feel free to contact us for a free quote!
